🆕 This afternoon · LightDesk 1.1

One engine on port 7070 drives the lights. Every version, the new two-screen desk and the classic single window, is a page on that engine, so either launcher controls the rig.

📖 Open the tutorial 🎛️ Open the desk studio wifi only

🖥️ On the PC desktop

Lighting Desk 1.1.cmd and Lighting Desk 1.1 (classic single window).cmd. Everything else is in Old launchers.

✅ Proven on the Mac

Fact: version 1.1 in all three headers and in /api/status app.version.
Fact: the classic window drives the new engine. Dry run: tap VERSE, the desk shows it LIVE.
Fact: commits 37f1fd6 and 27916fc.

🔍 What you opened and why it had no lights

PENDING Filled in once the PC check is back.

🔁 Build and swap

PENDING Folder, process id and how long the lights went dark.

📸 Proof shots

PENDING Both launchers on the PC, lights responding.

Your words and sources

Your words: “I just opened the Light Desk on the Lighting Computer and it opened up the old version. I want you to compile the new version and put that on the desktop as Lighting Desk 1.1.”
Your words: “Also, the old light desk is not controlling the lights anymore. All of the versions should all be controlling the lights if you open one or another.”
Fact, trc-lighting repo: 37f1fd6 versions the headers, status and help; 27916fc labels the classic window LightDesk 1.1 classic.
Fact: the tutorial copy here matches the repo help at stamp d297897. Chapter 10 names the Old launchers folder.

🆕 Today · UX and UI pass

LightDesk v2 UX pass is live on the lighting PC at d297897. Fable judge round 3: all four surfaces SHIP, every round 3 defect fixed.

Round 2, the judge's words: “a serious busking instrument for this room.” See the proof

📖 Open the tutorial Re-shot for this pass. 162 of 162 controls resolve.

🎛️ Open the desk studio wifi only 🖥️ Screen 2 studio wifi only

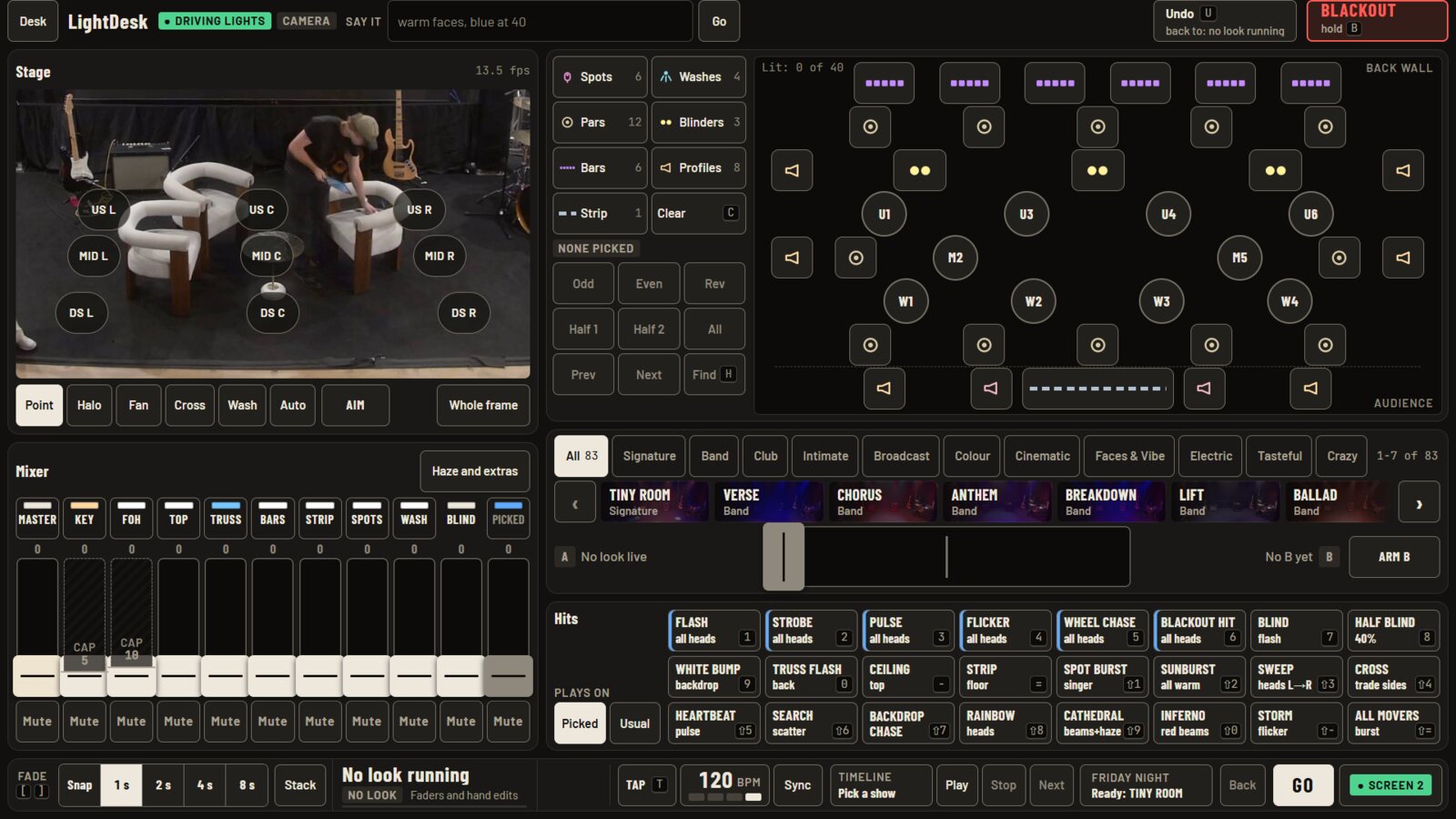

Screen 1 on the lighting PC after ship 4: the desk driving the lights, stage camera, Aim, the crossfader row with Arm B under the moods — The lighting PC after ship 4, 12:58. Screen 1, then screen 2. No NDI window, no taskbar.

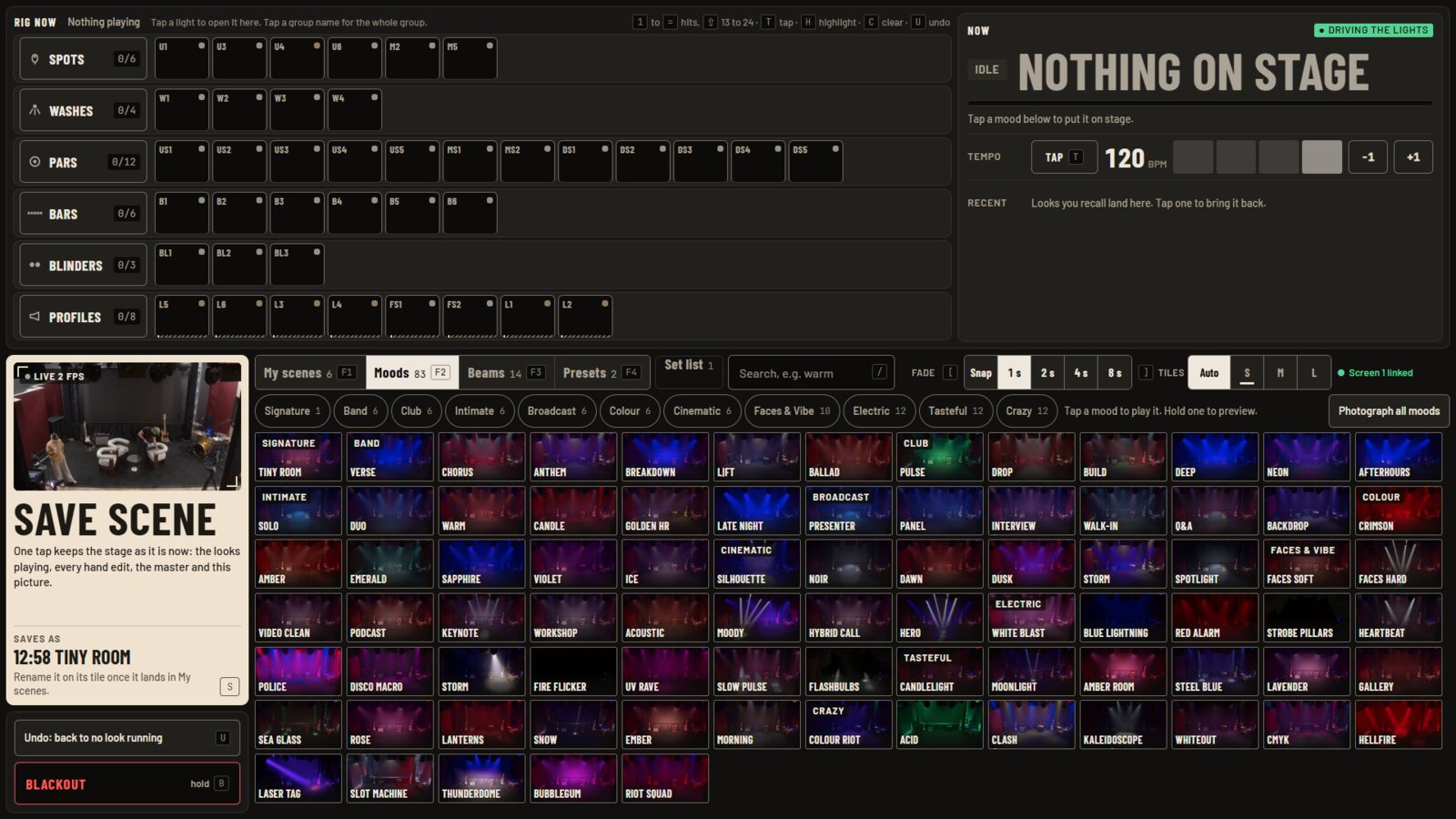

Screen 2 on the lighting PC after ship 4: Rig now board, the NOW readout reading Nothing on stage, all 83 moods, Blackout clear — The lighting PC after ship 4, 12:58. Screen 1, then screen 2. No NDI window, no taskbar.

⚖️ Scorecard

Surface	R1	R2	R3
Desk	3/4	3/4 HOLD	3/4 SHIP
Screen 2	3/4	3/4 SHIP	3/4 SHIP
Phone	3/4	3/4 SHIP	3/4 SHIP
Tutorial	3/4	not scored	3/4 SHIP

src proof: judge rounds 1 and 2 · R1 at 82a1387, R2 at ed65a1a, R3 at 2c9ec18 (conductor brief, secondhand)

✨ Three new moves

Hold a tile to preview. 250 ms hold shows a ghost. 0 writes while previewing.
Aim drag. Drag on the stage to steer the picked heads, about 10 Hz when armed. 0 POSTs unarmed.
A/B crossfader. Under the moods on the desk and the phone. Thumb-only grab: a stray tap sends 0 POSTs.

src proof: lanes A, B, C and hazard fixes

🔧 Live-room fixes after round 2

Undo under a latched blackout releases it first and reads “back to: lights on.”
Aim turns off when you leave the Point screen.
A plain recall clears B.
Phone crossfade track stays hidden until B is picked.
Desk rail shows two levels: A in green, B in blue.
Mid-fade tiles read LIVE 65 and B 35.
Screen 2 NOW readout has a compact 36 px mode.

src proof: hazard fixes · merged head 7cf4ff8 · regress 14 of 14

🟡 Still open

Three strobe thumbnails read as black: FIRE FLICKER, STROBE PILLARS, BLUE LIGHTNING. They need a re-shoot with the lights on.
Unverified: whether the stage dips during the crossfader's 0.5 s B fade-in. The judge ran dry, fixtures unpowered.
A desk restart while the camera is stale can open the NDI monitor once. It is no longer pinned on top.

src proof: deferred · NDI item: conductor brief (secondhand)

🟢 Ship 3 live on the PC

0 s dark

Head 2c9ec18 on 7070. Same server pid 6592 before and after: pages only, no restart. Read-only regress green, 10 of 10.

Screen 2 window fixes: NDI monitor closed and the camera feed no longer restores it (2e9fe48); the two desk windows are brought forward without flashing the taskbar (b5015c2, db0876b).

src ship 3 proof, 12:33

⚖️ Judge round 3: all SHIP

“Yes, a touring LD would leave a guest alone with these three screens and this tutorial for a Friday night, with one spoken instruction: ‘if Undo ever brings up two looks, tap the mood you want.’ After defect 1 ships, that instruction is unnecessary.”

The judge's answer to the one question. All six round 2 fixes measured PASS.

The six PASS checks

Crossfader taps away from the thumb: 0 POSTs. 15 Hz per look, complementary.
Undo under blackout releases it first, on all three surfaces.
Aim is off after Point, Halo, Point. Unarmed drag: 0 POSTs.
Recall mid-fade clears B.
Phone grid 407, 495 and 164 px with no B.
Rail two-line names never clip. Mid-fade tiles read “Live 50” green and “B 50” blue.

src conductor brief, judge round 3 at 2c9ec18 (secondhand)

✅ Round 3 defects: all fixed

Undo groups a crossfade: one “crossfade to B” entry, one press returns to A alone.
A red Dark tag shows on the desk and phone walls under blackout.
Rail sub copy no longer clips at 1536 px.
Phone landscape with B picked: grid 114 to 164 px.
House rules are one list, not three identical cards.
Screen 2 Undo reads “Undo: back to NAME”, never clipped at 1920 px.
Tutorial chapters 4 and 9 re-shot with the mid-fade tile tags.

src conductor brief (secondhand) · merged at d297897 · Mac dry run: regress 14 of 14, 162 of 162 controls · help stamp e3db203

🟢 Ship 4 live on the PC

about 1.2 s dark

Head d297897 as pid 440. Build, swap and one restart at 12:58:02: stop 12:58:01.8, streaming 12:58:03.0.

Backup lightdesk-next-backup-2026-10-11-ship3.
4 media packs, md5 matched. Help media 73 of 73.
NDI monitor down. Camera image 0 s old.
Read-only regress green, 10 of 10.
Restart budget: 3 of 3 used today.

src ship 4 proof, 12:58

🔁 Before and after

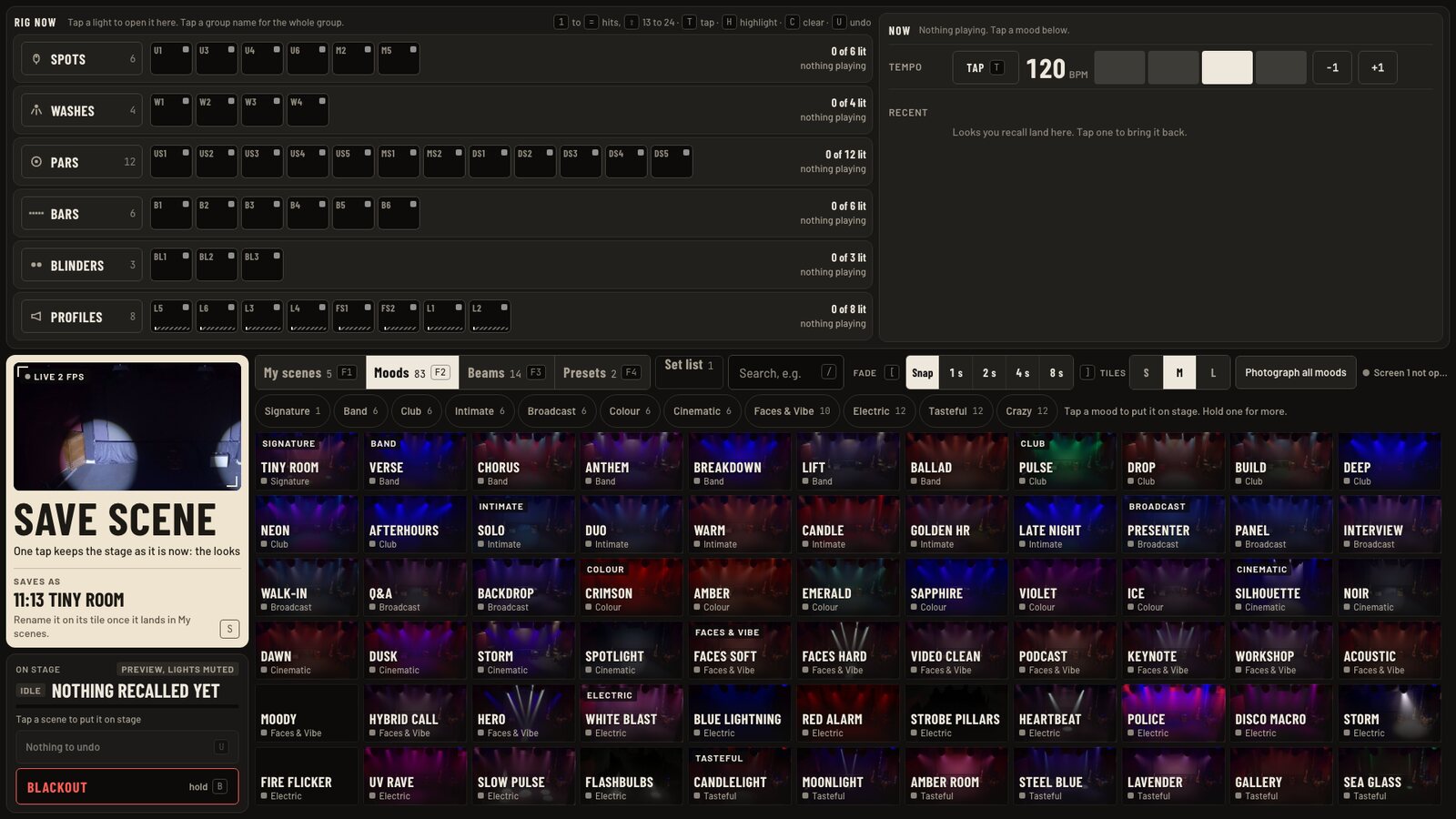

Screen 2 before: idle, NOW panel nearly empty, 6 by 12 mood grid — **Screen 2.** Before, then after: a 68 px NOW readout, and all 83 moods fit.

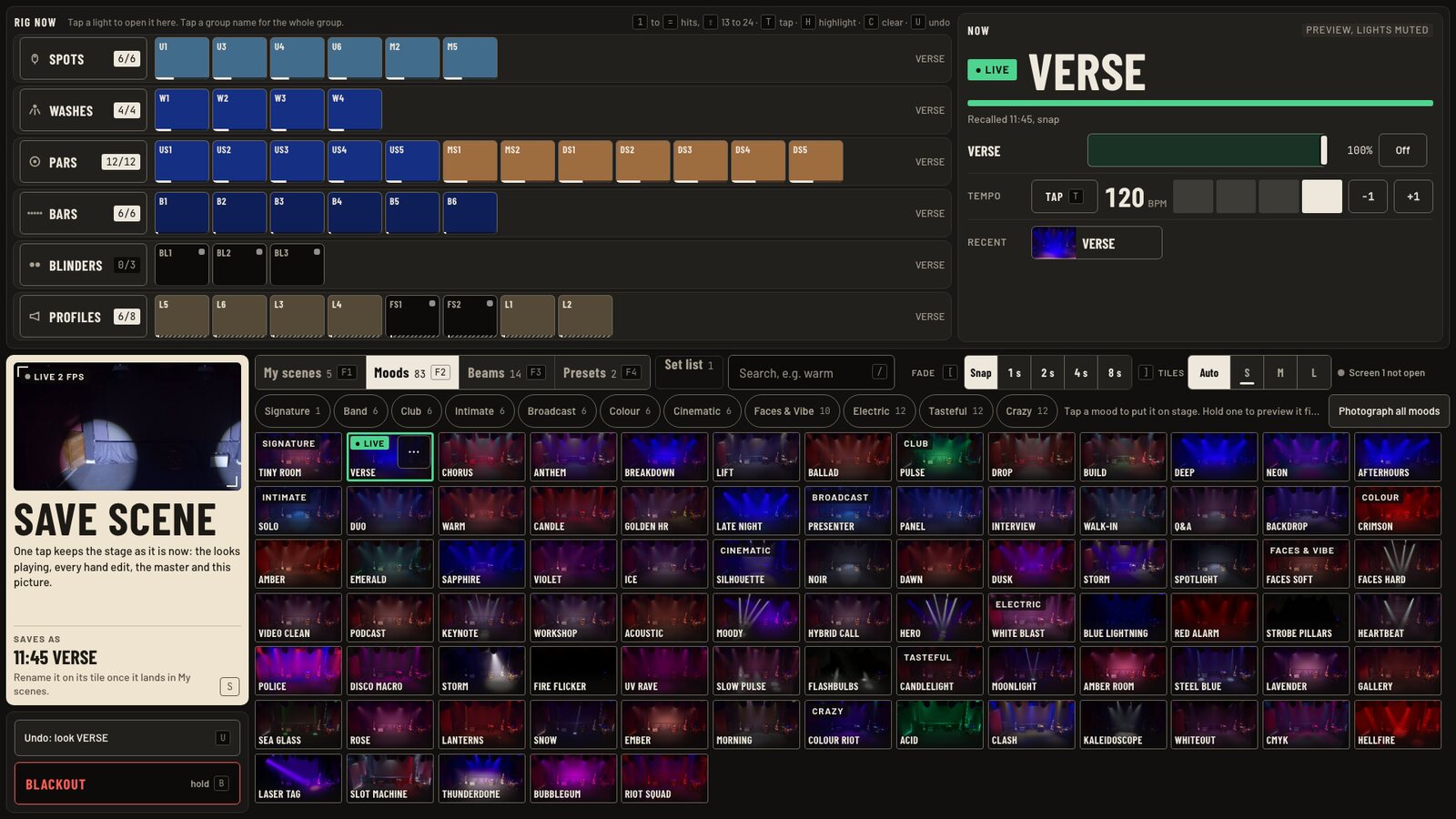

Screen 2 after: large NOW readout with VERSE live, all 83 moods fit on screen — **Screen 2.** Before, then after: a 68 px NOW readout, and all 83 moods fit.

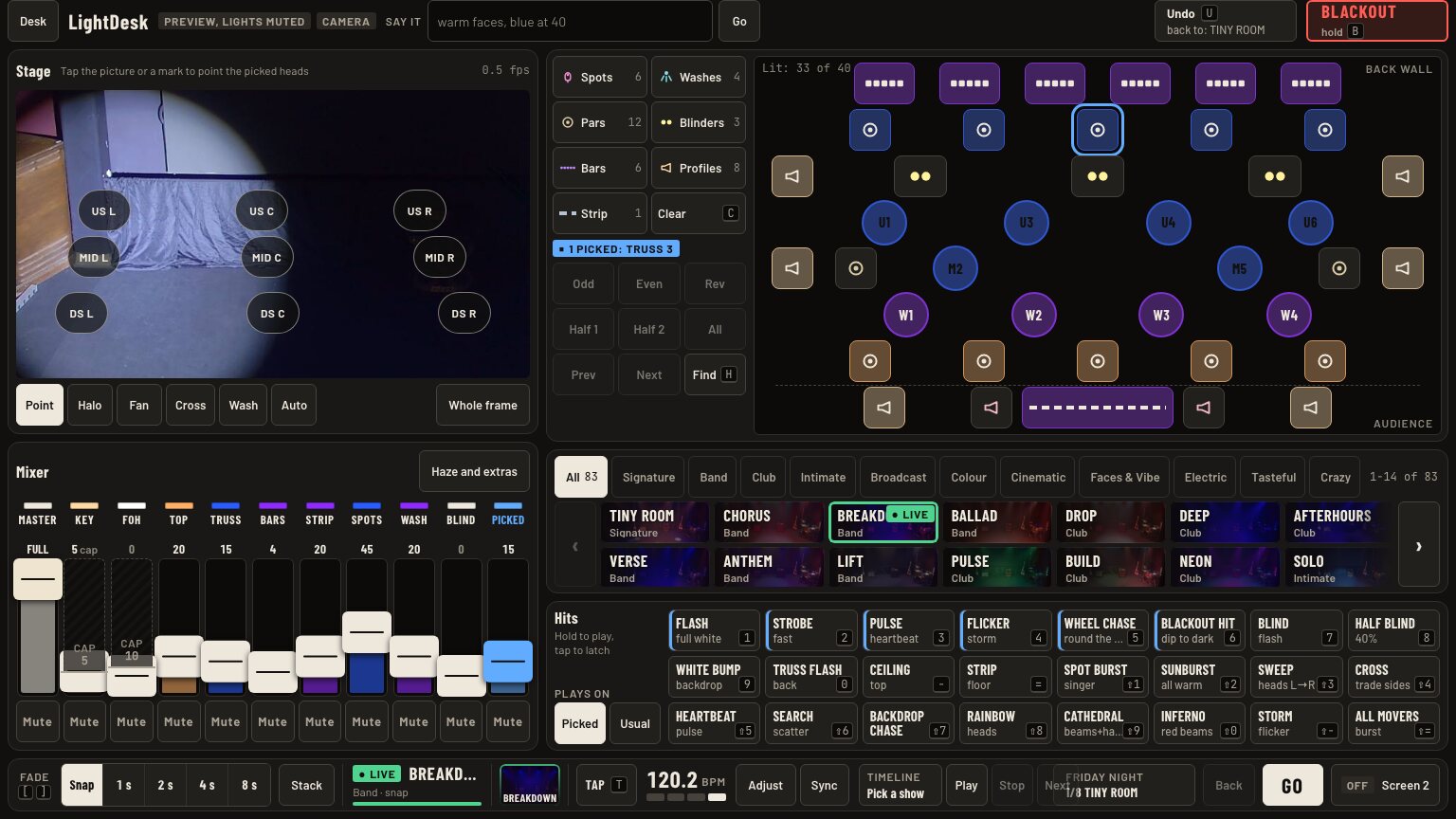

Desk before the pass at 1536 px — **Desk.** Before, then after: Aim, the crossfader under the moods, the full look name.

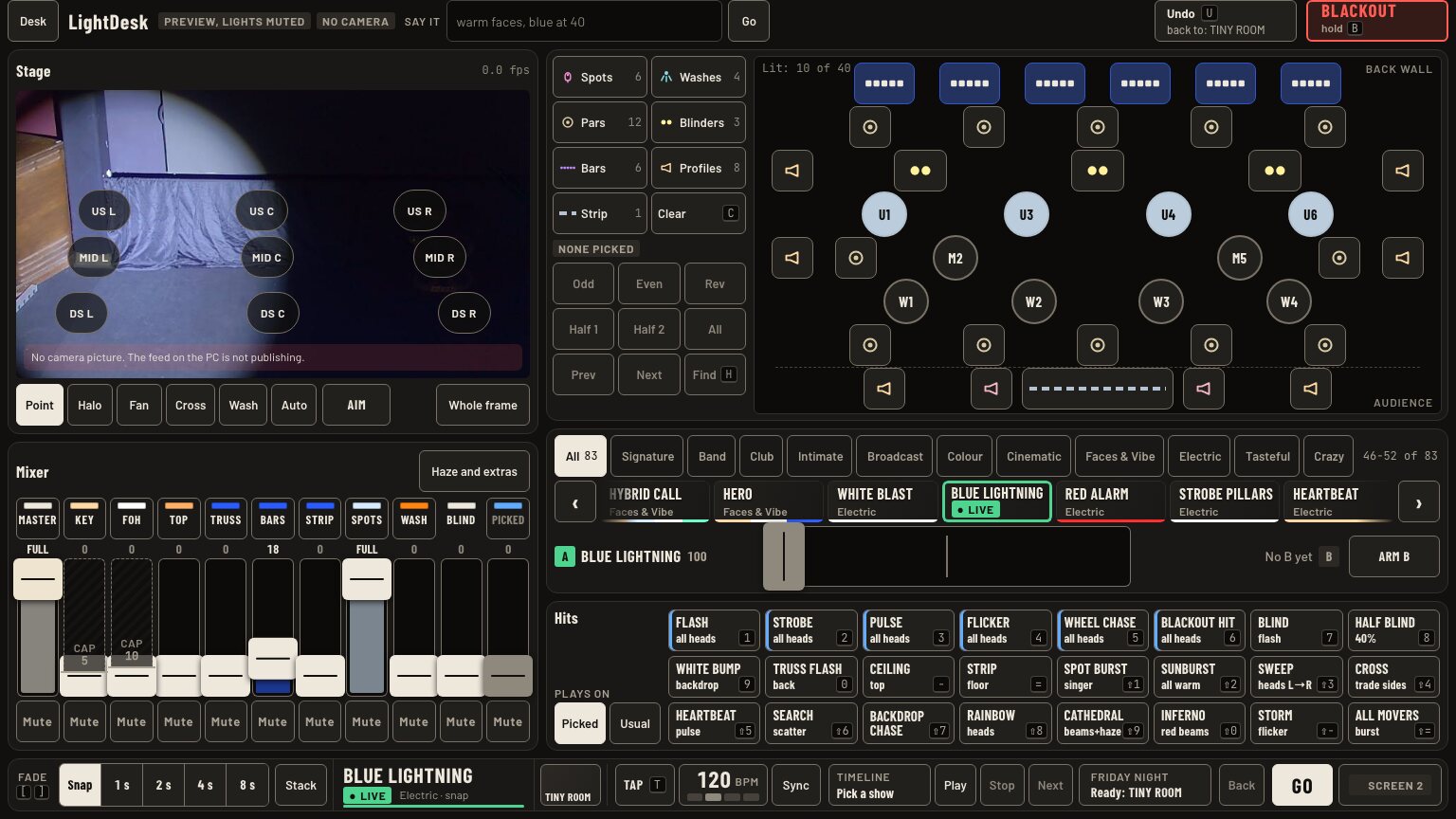

Desk after: Aim button on the stage, crossfader under the moods, full look name on the rail — **Desk.** Before, then after: Aim, the crossfader under the moods, the full look name.

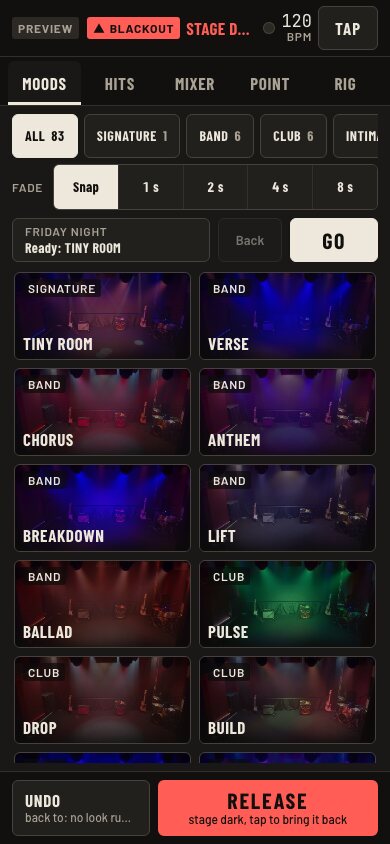

Phone before: one-row header in blackout — **Phone.** Before, after, then mid-crossfade at 50/50 from VERSE to CHORUS.

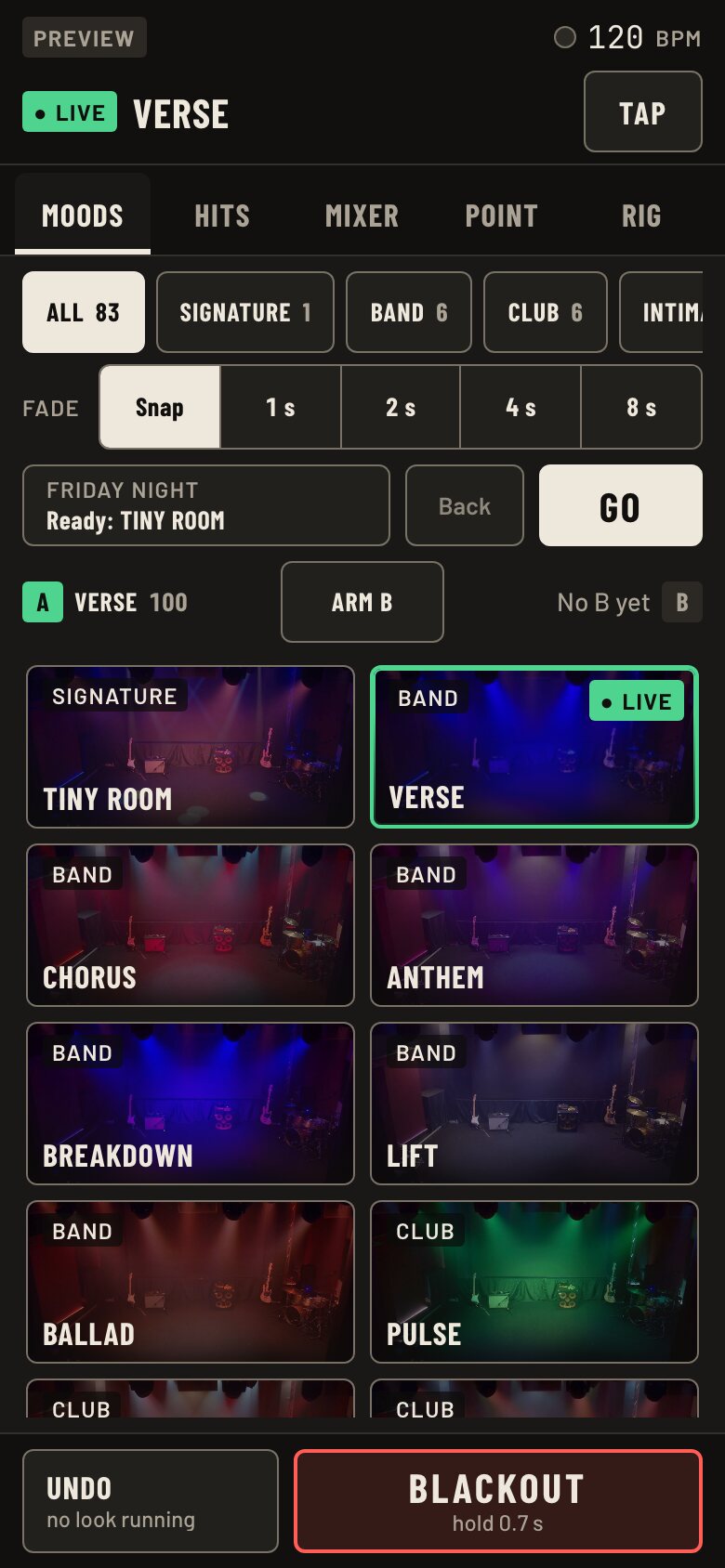

Phone after: two-row header with VERSE live, Arm B above the photo mood tiles — **Phone.** Before, after, then mid-crossfade at 50/50 from VERSE to CHORUS.

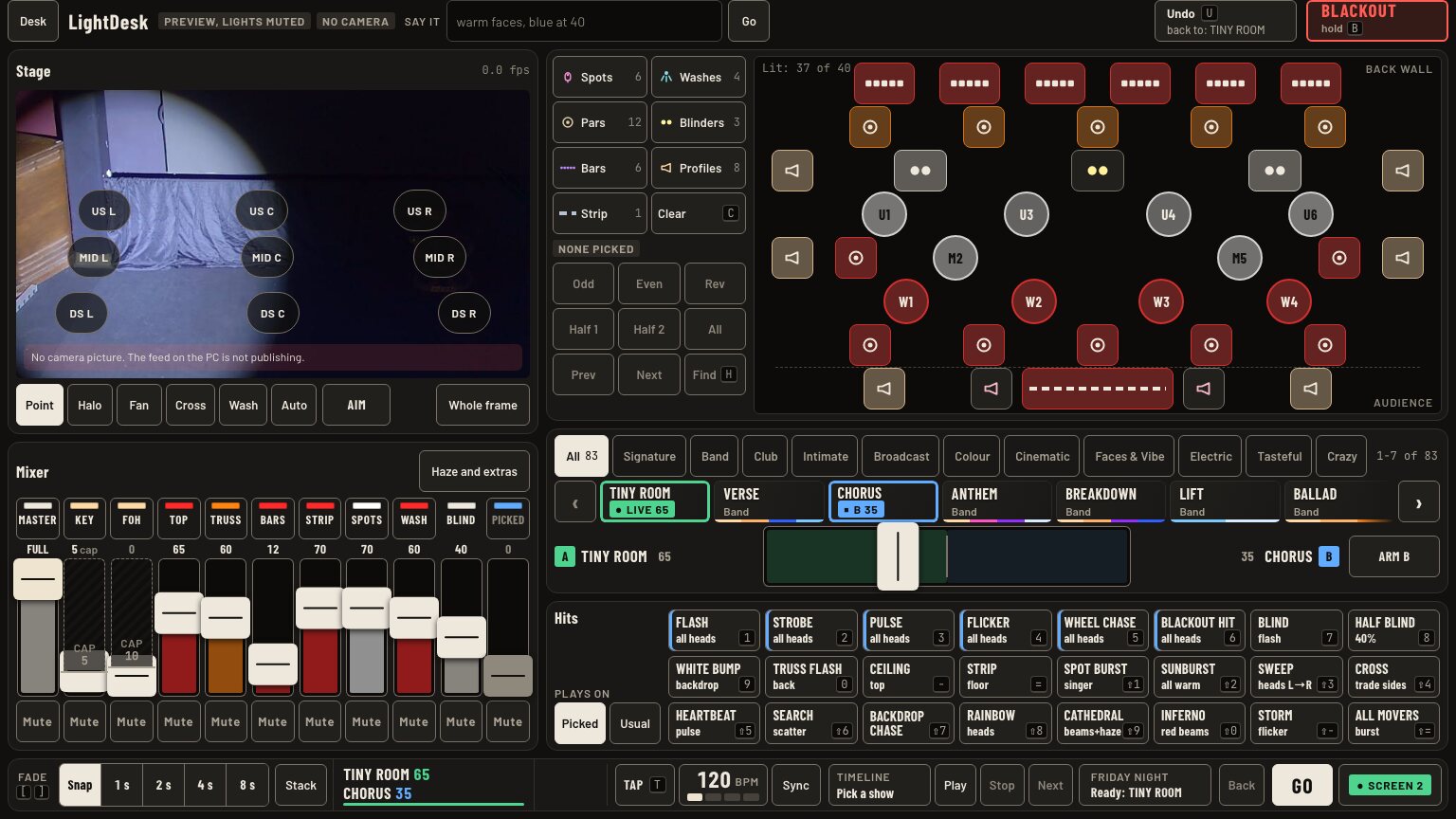

The desk mid-crossfade: tile badges read LIVE 65 and B 35 — **Desk mid-crossfade.** Tiles read LIVE 65 and B 35.

📄 Full proof: lanes, commits, merge order

UX pass proof, rounds 1 and 2, hazard fixes, deferred
Ship 3 proof: PC checks, transport, open window findings
Ship 4 proof: build, swap, 1.2 s dark, pid 440
Your words: “you need to do another full pass on the UX and UI. Do serious judgements - this should be BEST IN THE WORLD level graphics and ux”
Fact, proof file: every score, count and commit above. The verdict quote is the Fable judge's.

🌙 This morning, 08:30

LightDesk v2 runs on the lighting PC. The tutorial is ready.

📖 Open the tutorial 11 chapters with real captures. Start at chapter 0, What you see.

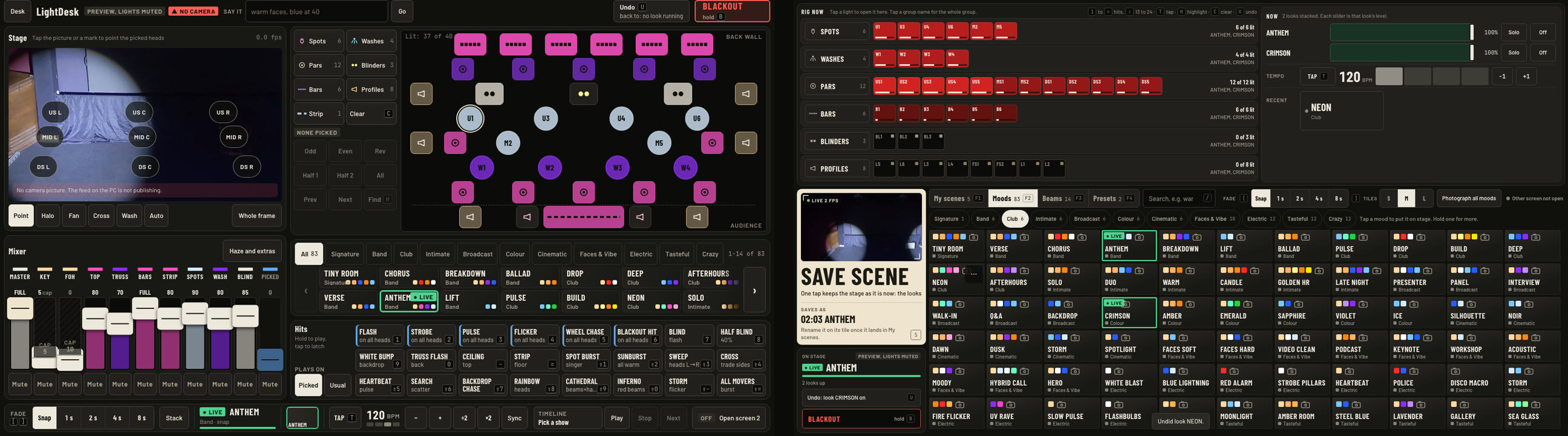

The lighting PC's two monitors running LightDesk v2: screen 1 desk on the left, screen 2 wall on the right

🖥️ Tutorial on the PC studio wifi only 📱 Phone remote studio wifi only

🟢 Ship 1 live

02:32:48

1.3 s dark. Desk pid 1948 at 4dc2b4a. Both monitors full screen, taskbar auto-hides.

src run log 02:33

❓ Your call: push where?

Branch two-screen is on the Mac and the PC only, not pushed. Which branch gets it?

📤 Unstable 📤 Stable

Each button opens a text to yourself. A self-text from your number is a command the grid reads.

🟢 Ship 2, the final

03:11:24

1.3 s dark. Commit 21f3b16, the judge 2 fixes. Live on the desk now.

What ship 2 carries

Screen 2 blackout hold survives a cue, and a tap releases it.
Tapping the live tile on the desk no longer turns the mood off.
Phone: a latched hit shows a status line with Stop.
Timeline name keeps a minimum width at 1366 px.
Closing the desk stops its timers.
Rig now shows the capped level (KEY 5), the level on the wire.
Map label, tutorial wording, and an "effects stopped" toast.

src ship 2 fix proof, 9 items measured · run log 03:00

⚖️ Judges

Judge 1, 02:15: HOLD. 9 fixes landed, then judge 2, 02:55: SHIP overnight.

3/4Screen 1

2/4Screen 2

3/4Phone

2/4Tutorial

Screen 2 lost its blackout hold during a cue; ship 2 fixes it. The tutorial scored before chapters 6 and 8 were written; both are written now.

src fix proof, items A to I · run log 03:00

🚩 Three flags

🔴 LEKO FOH 1 (fixture 1, address 33) ignores DMX. Fix at the unit.
🔴 A file named "GitHub personal access token.txt" sits on the lighting PC's Desktop.
🟡 The fleet file board is full of office-ai-laptop zips.

src run log 00:07, 02:33 · w1 server proof · token file: fact, run log 10/10

🛠️ Built tonight

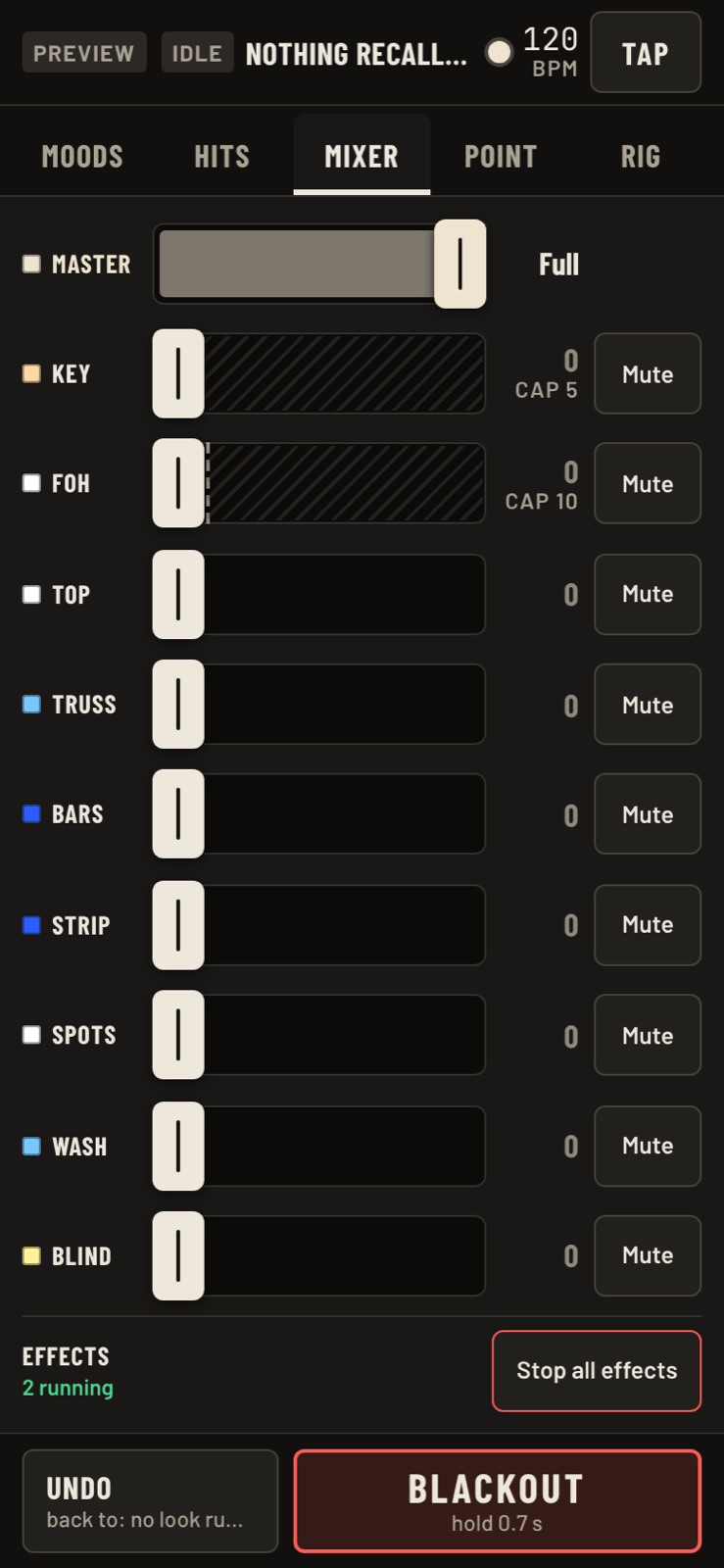

KEY 5, FOH 10 caps on the wire
With KEY capped at 5, the KEY lekos read 12 of 255 in the DMX frame, even with the fader at Full.
Proof: w1 server
Tempo clock
Tap, BPM, nudge, sync. Hits step in beats: 501.1 ms mean step at 120 BPM.
Proof: w1 server
Highlight
Hold to flash the picked lights; it respects the KEY cap.
Proof: w1 server
Per-look levels and Solo
Two looks mix highest-takes-precedence; level 30 and 15 matched to 0 counts on 30 fixtures.
Proof: w2 server

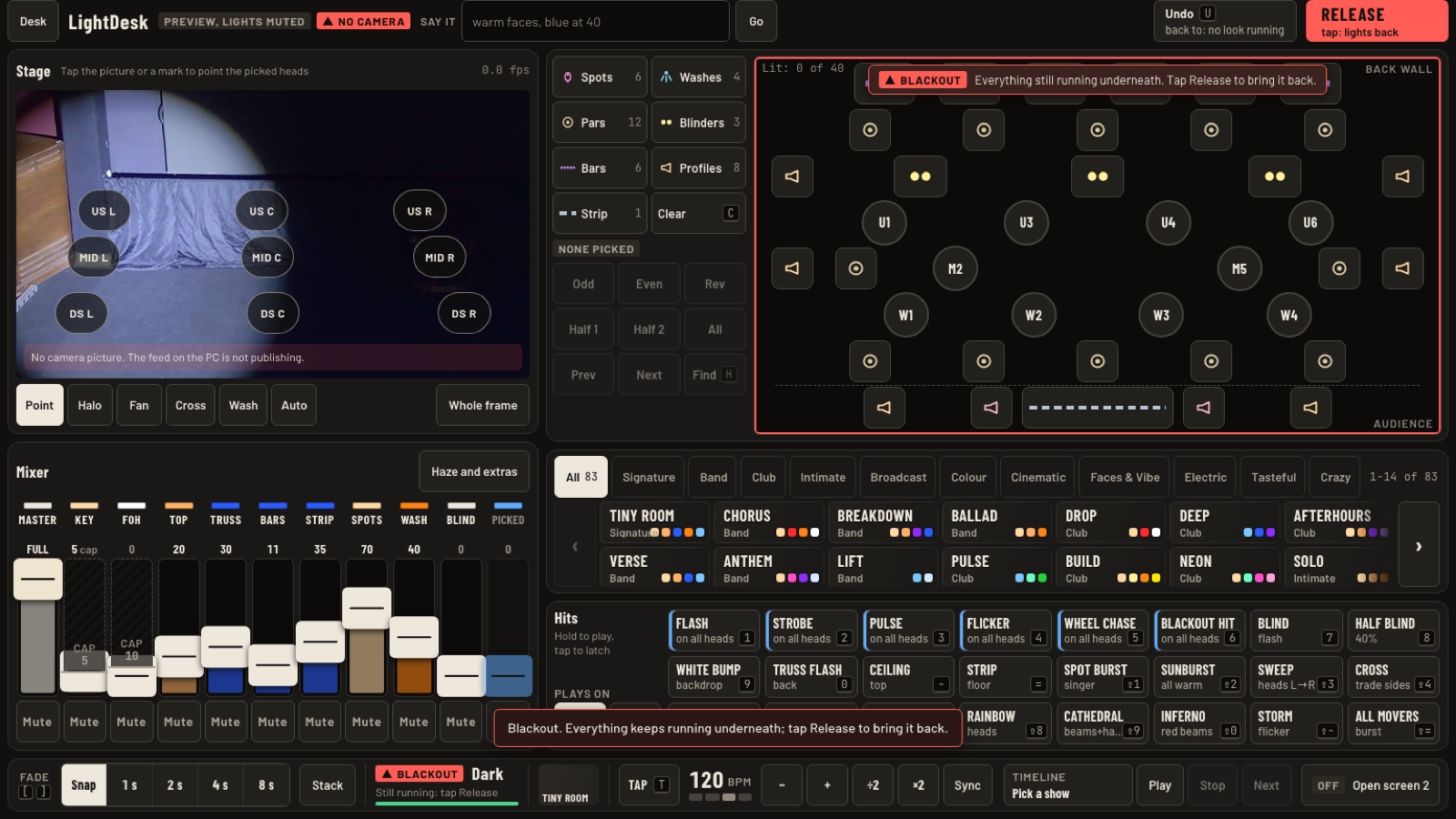

Blackout that keeps the state
Hold B goes dark and reads Release; release restores every channel. A hard blackout is a two-tap.
Proof: w2 server
Haze hold
The hazer stays on through a blackout.
Proof: w2 server
Effects on the beat
Sine, ramp, chase and colour cycle; colour fan across picked lights. 1000.0 ms period at 120 BPM, 2 beats.
Proof: effects engine

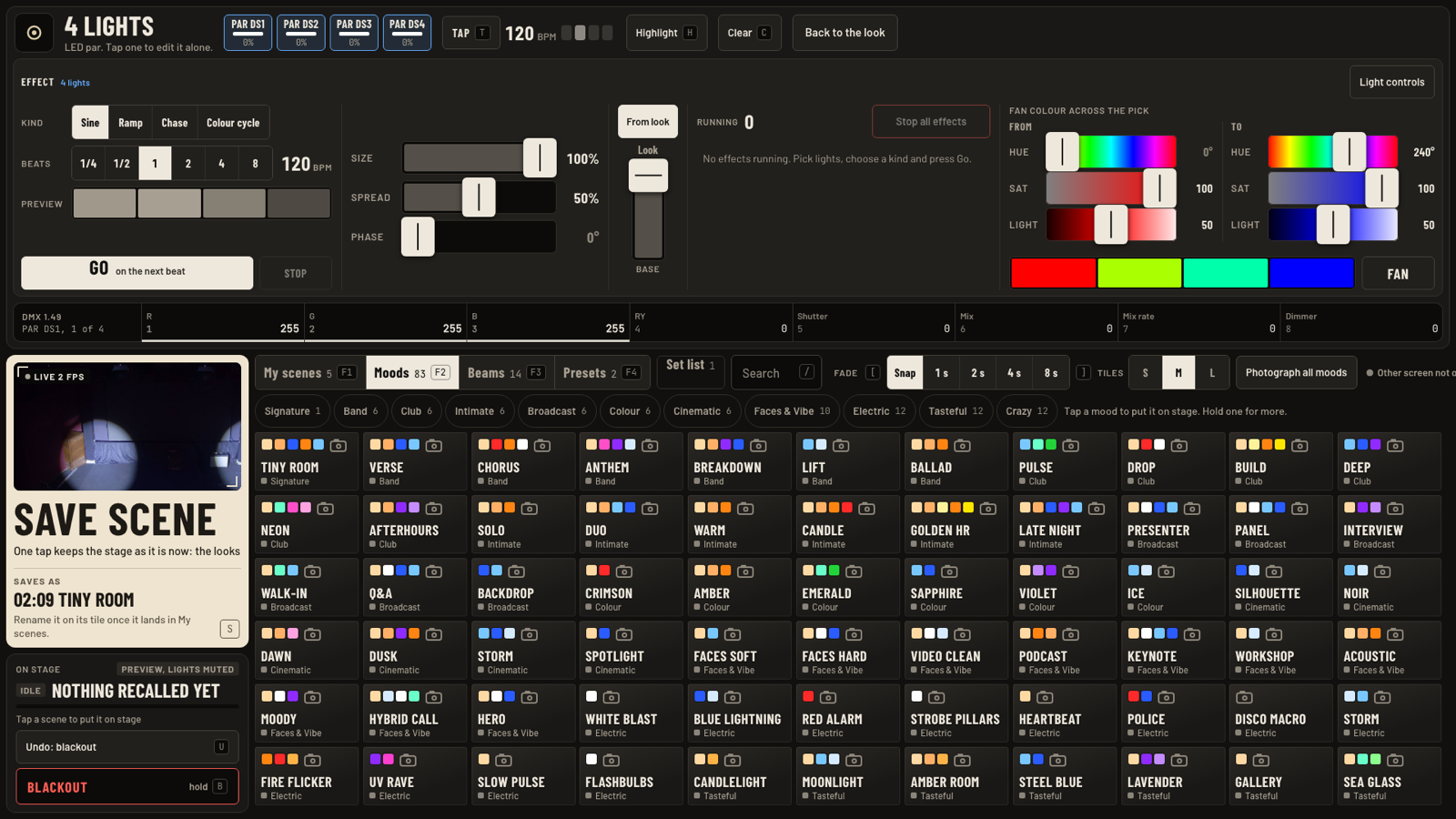

Effect card
Pattern, Shape, Base, Running, Fan on screen 2; Stop all on the phone.
Proof: effect card

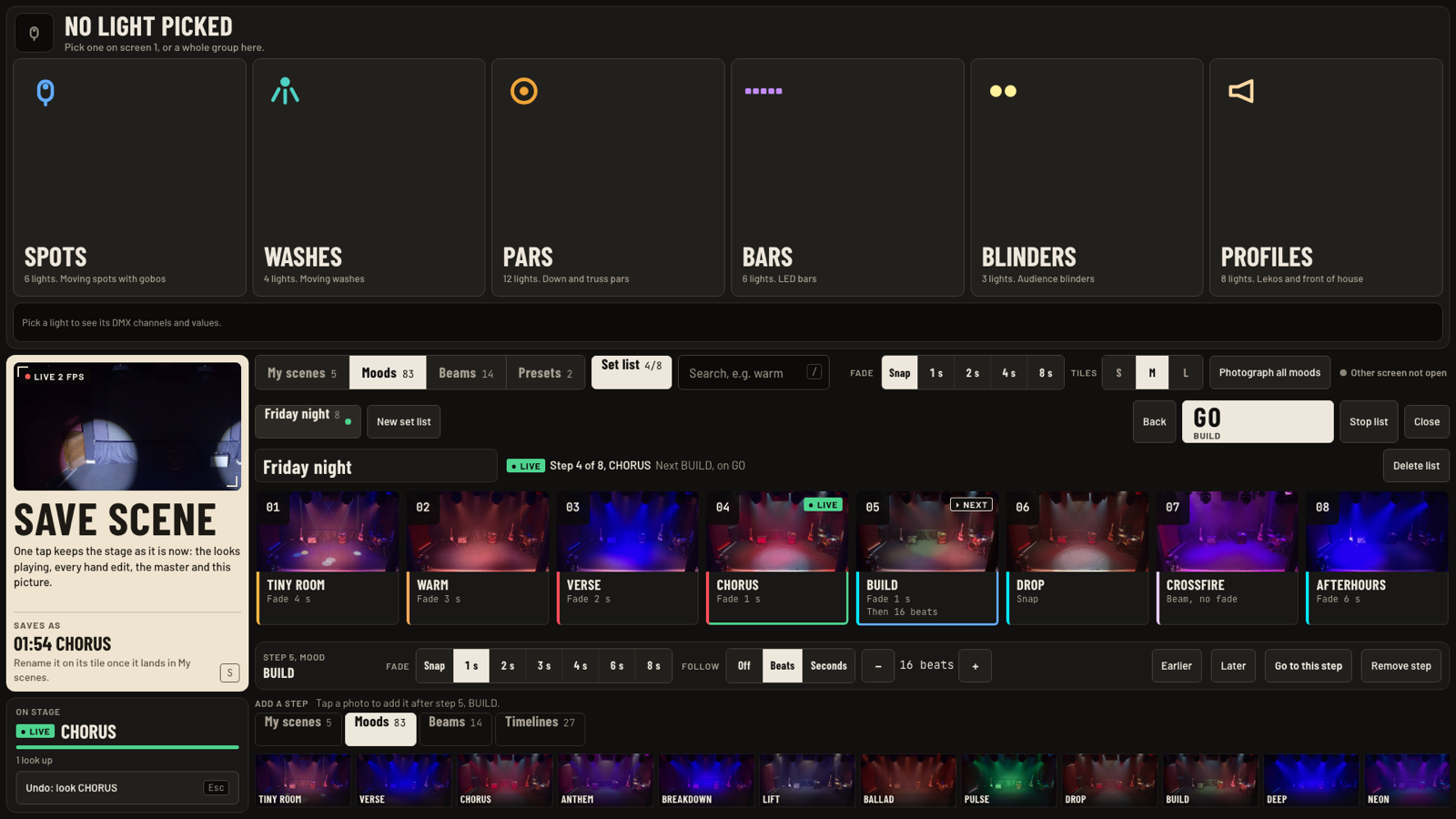

Set lists
GO, Back and follow in beats on the desk, screen 2 and the phone.
Proof: set lists
Phone remote

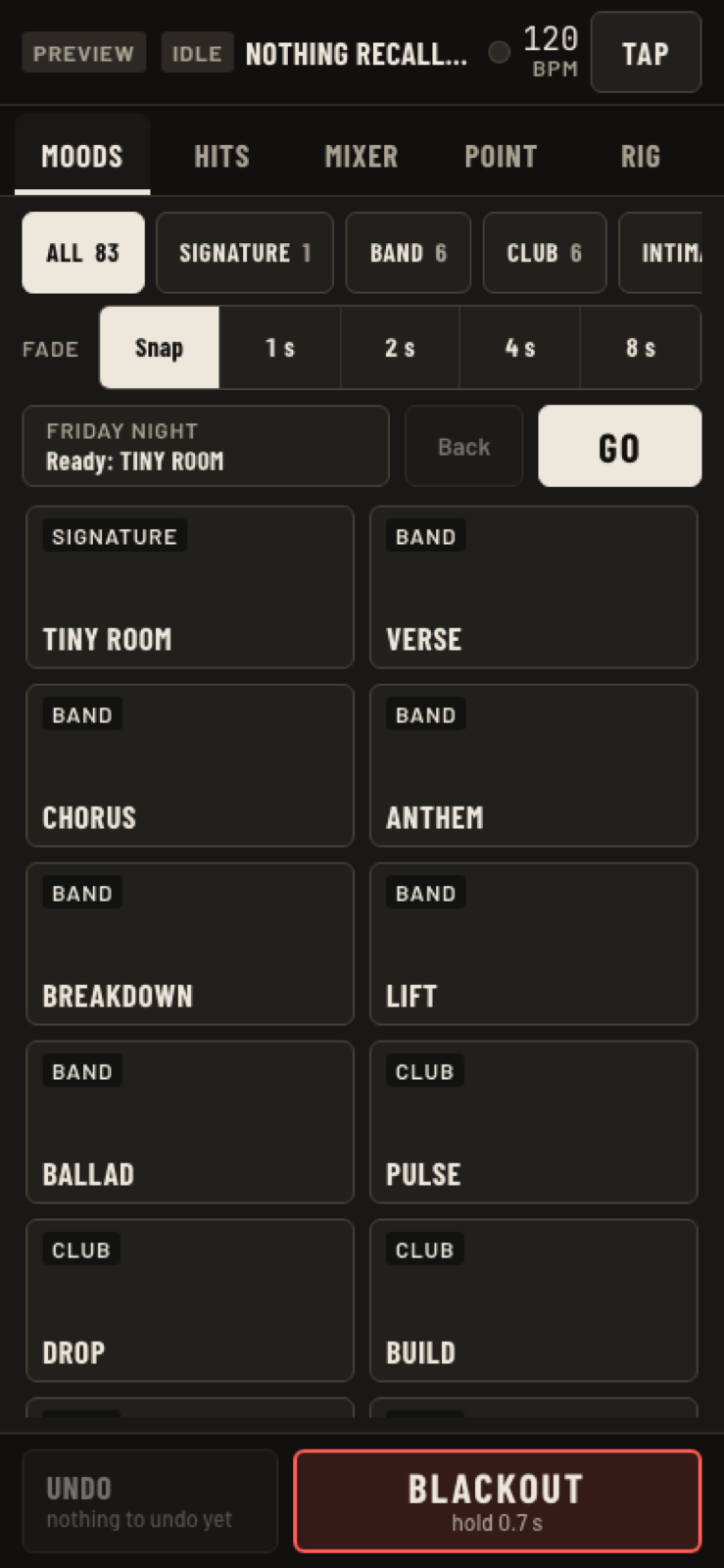

/phone.html: Blackout hold and Undo in a fixed bottom bar, no page scroll at 390 px.
Proof: fix lane
Regress harness and capture tool
14 checks go green on a good build and red on a broken one; the capture tool makes the tutorial GIFs.
Proof: harness

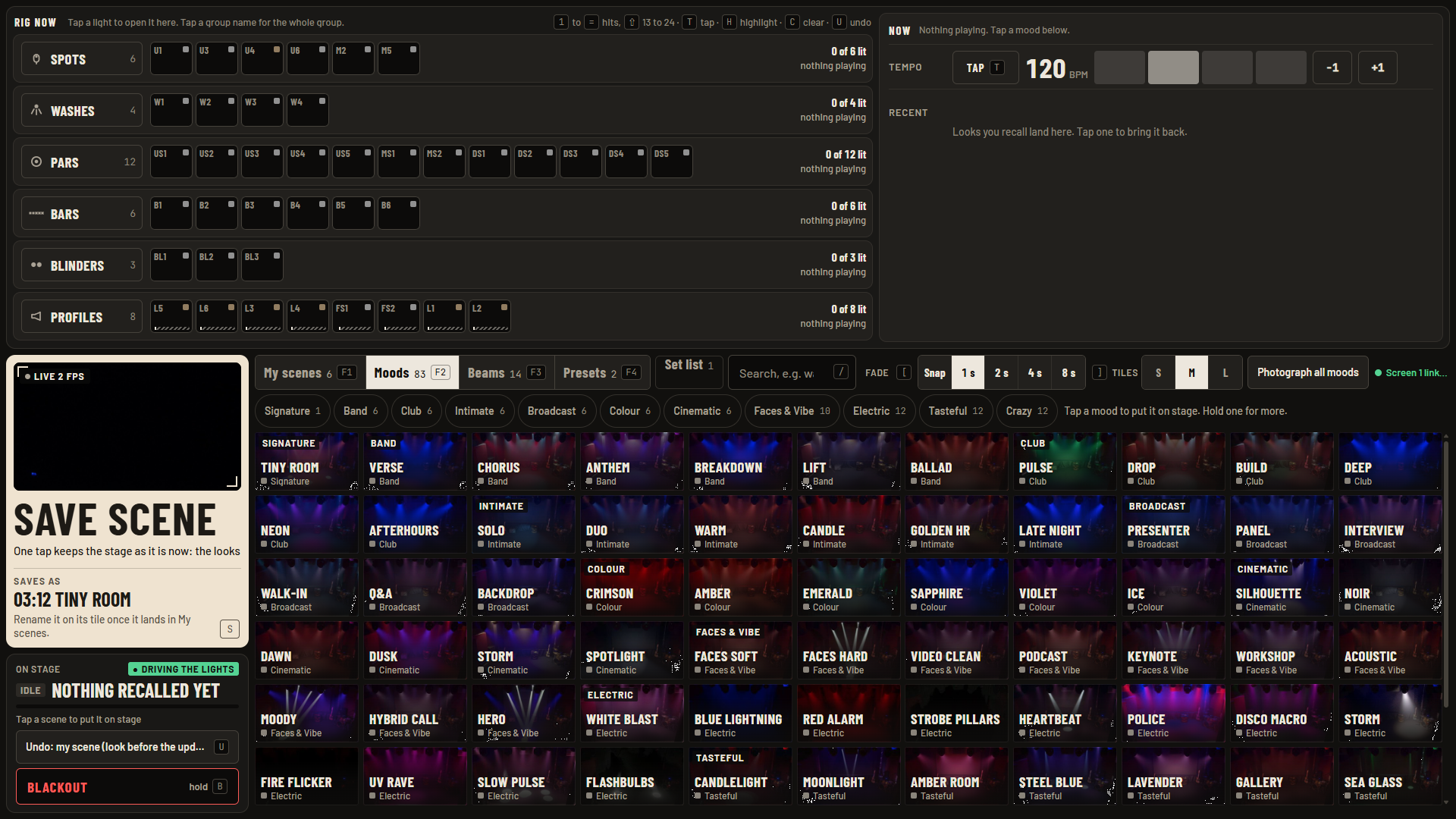

83 scene photos on the wall
Every mood tile on screen 2 shows its own photo.
Shot: screen 2 on the PC
Punchlist closed
P0-1 to P0-5 and the P1 rows. Closure count from the conductor brief (secondhand).
Punchlist

📚 Plan, research and proofs

🗺️ Night plan 🏁 Benchmark vs other consoles 📋 Punchlist 🕑 Run log

Every proof file

🧾 Where each fact comes from

Fact, proof files: cap 12/255, tempo 501.1 ms, effect period 1000.0 ms, levels match, 14 regress checks, 9 judge 1 fixes (items A to I).
Fact, run log: ship 1 time, 1.3 s dark, pid 1948, commit 4dc2b4a, backup name, judge 2 scores, LEKO FOH 1, fleet board full, black camera tiles, the token file on the PC Desktop (10/10).
Fact, punchlist P1-1: 83 mood tiles.
Secondhand, conductor brief 03:00: judge times 02:15 and 02:55, the ship 2 list, P0 and P1 closures, the deferred list.
Your words, 01:05: "spend the night doing deep analysis and iterations on the lighting software to make it the best in the world, and building the entire thing on the lighting computer. In the end I want to see a full tutorial."
